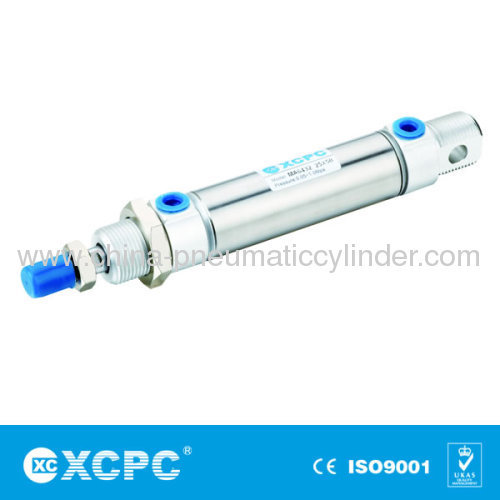

MA6432 Series Pneumatic Cylinder

Price: 5.0 USD
Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: MA6432 Series
Production Capacity: 1000 pcs per week
Delivery Date: 2-4 weeks
Working Medium: Air
Ensured Pressure Resistance: 15.3kgf/cm2(1.5Mpa)
Buffering: 50~750mm/s
Means of Transport: Ocean,Air;courier
Packing: international standard,wood...
Brand Name: XCPC
Motion Pattern: Double Action or single Act...
Max.pressure: 10.2kgf/cm2(1.0Mpa)

1.Working Medium: Air
2.Motion pattern: Double Action or single Action
3.Ensured Pressure Resistance: 15.3kgf/cm2(1.5Mpa)

product name: MA6432 Series Mini Cylinder

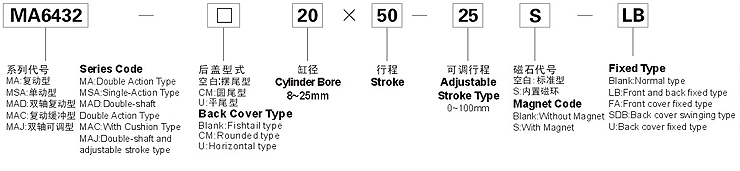

Ordering Code



Specification

Cylinder diameter(mm)81012162025
Working MediumAir
Motion patternDouble Action or single Action
Ensured Pressure Resistance15.3kgf/cm2(1.5Mpa)
Max.pressure10.2kgf/cm2(1.0Mpa)
Min.pressure0.5kgf/cm2(0.05Mpa) 1kgf/cm2(0.1Mpa)
Environment and fluid temp-20~+80℃(Internal Magnetic Install by Tach strap:Type Max:60℃)
Piston veocityRubber Bufer(Standard),Air Buffer(Option)
Buffering50~750mm/s
Kinetic energy To Lerance(kgf/cm)0.20.30.40.92.74
Pipe SizeM5×0.8G1/8

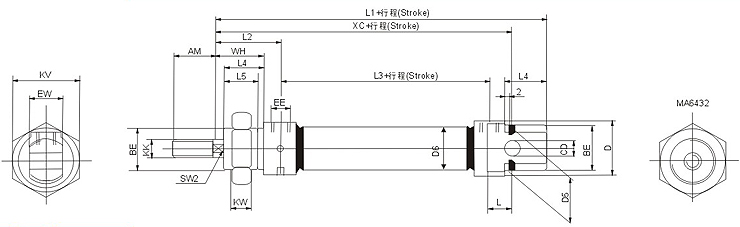

Overall Dimensions






Dimensions sheet

Bore/SymbolAMBEΦCDΦDΦD5ΦD6EEEWAMKKKVKWLL1L2L3L4L5SW2WHXC
812M12×1.254151512M5812M419767822341210-1664
1012M16×1.254151512M5812M419767822341210-1664
1216M16×1.56202016M51216M62469892838171552275
1616M16×1.56202016M51216M62469952844171552282
2020M22×1.58272722G1/8"1620M8308121123251.6201872495
2522M22×1.58272722G1/8"1622M10×1.2530812119.53653.12220826104


BoreAMBEΦCΦCDΦDEEEWF
φ812M12×1.254417M5×0.8812
φ1012M16×1.254417M5×0.8812
φ1216M16×1.56620M5×0.81217
φ1616M16×1.56620M5×0.81217
φ2020M22×1.58828G1/8"1620
φ2522M22×1.58833.5G1/8"1622

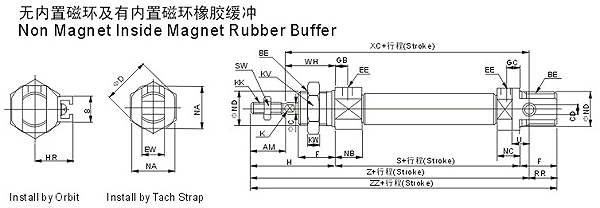

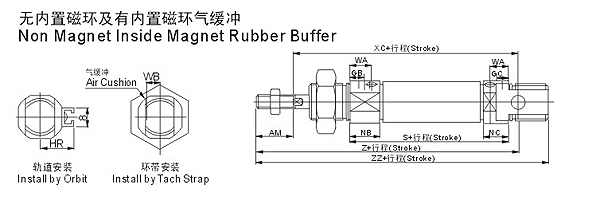

BoreGBGCWAWBHHRKKKKVKWNBNCNAΦNDRRSSWUWHXCZZZ
φ875--2810-M4×0.719611.59.5151210467616647686
φ107(5.5)7(5.5)10.54.52810.5-M4×0.719611.5(13.5)9.5(13.5)15121046(53)761664(71)76(83)86(93)
φ128(5.5)6(5.5)9.55.538145M6×424812.5(12.5)10.5(12.5)18161450(54)1092275(79)91(95)105(109)
φ168(5.5)6(5.5)9.55.538145M6×0.824812.510.5(12.5)18161356109228298111
φ2088178.544176M8×1.2532111515242211621312249595126
φ2588201050208M10×1.253211151530221165171228104126137


Other Info

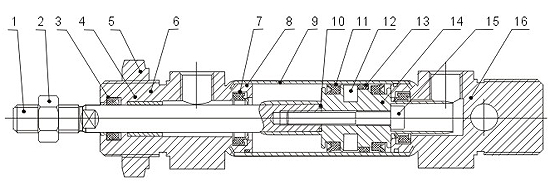

Structure

NO.Designation
1Piston Rod
2Piston Rod Nut
3Front Cover Seal
4Bearing
5Hexagon Screw
6Front Cover
7Cushion Ring
8O-ring


NO.Designation
9Barrel
10Piston rod O-ring
11Piston O-ring
12Magnet(Optional)
13Wear Ring
14Piston
15Hex Socket Screw
16Back Cover


Stroke

Bore(mm)Standard strokeMax.Stroke(mm)
810,25,40,50,80,100,125,160,200400
1010,25,40,50,80,100,125,160,200400
1210,25,40,50,80,100,125,160,200400
1610,25,40,50,80,100,125,160,200400
2025,40,50,80,100,125,150,160,175,200,250,3001000
2525,40,50,80,100,125,150,160,175,200,250,3001000
