Product Detail

Model No.: XOL Series

Production Capacity: 1000 pcs per week

Delivery Date: 2-4 weeks

Port Size: G1/8" G1/4" G3/8" G1/2" ...

Means of Transport: Ocean,Air;courier

Packing: international standard,wood...

Brand Name: XCPC

Function code: Lubricator

1. Function code: Lubricator
2.The direct constant-density lubricator add regulatd quantity oil to the compressed air.

product name: XOL Series Air Lubricator

The direct constant-density lubricator add regulatd quantity oil to the compressed air.A valve
maintains oil mist content proportional to the compressed oil flow.

The pressure drop that occurs when the air flow through a sight feed oil cup delives oil fnom
the bowl to the sight oil indicator.The drop of the oil flows into the air channel when it is atomized.
The oil drip rate is controlled by means of the regulating screw.Normally,1 to 12 drops/1000L
of the air is sufficient.

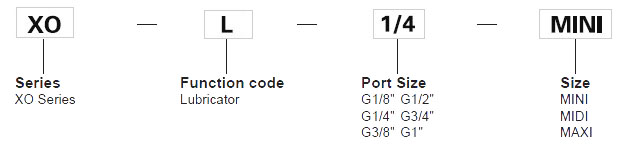

Ordering Code

Specification

Lubricators	MINI			MIDI			MAXI
	XOL-1/8-MINI	XOL-1/4-MINI	XOL-3/8-MINI	XOL-3/8-MIDI	XOL-1/2-MIDI	XOL-3/4-MIDI	XOL-3/4-MAXI	XOL-1-MAXI
Medium	Compressed air
Features of structure	Sintered filter with water spartor The direct Constant-density Lubricator
Mounting type	Pipe mounting or foot mounting
Assembly position	Vertical±5°
Connection	G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard nominal flow rate	1300	2300	2700	5500	6100	6300	8400	9000
Max.Working pressure	16bar
Min.Standard nominal flow rate	3L/min		6L/min				10L/min
Max.condensate capacity	22ml
Timperature range	0~60℃
Materials information	Housing:Zinc die-casting;Oil bowl and Drip cap :PC;Metal bowl guard:Aluminium alloy;Sealing:NBR

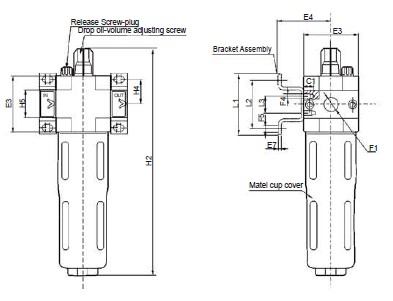

Overall Dimensions

Dimension Sheet

Model	E3	E4	E7	F1	F4	F5	L1	L2	L3	L4	L5
XOL-...-MINI	40	39	2	G1/8",G1/4",G3/8"	M4	4.5	44	35	11	17.5	20
XOL-...-MIDI	55	47	3	G1/8",G1/2",G3/4"	M5	5.5	71	60	22	24.5	32
XOL-...-MAXI	66	53	3	G3/4",G1"	M5	5.5	71	60	22	24.5	32,40
