Product Detail

Model No.: XMFZ Series

Production Capacity: 1000 pcs per week

Delivery Date: 2-4 weeks

Standard or Nonstandard: Standard

Structure: Control

Temperature of Media: Medium Temperature

Brand Name: XCPC

Used: dust remover

Means of Transport: Ocean,Air;courier

Packing: international standard,wood...

Power: Solenoid

Pressure: Medium Pressure

Material: Alloy

Media: Gas

Working Pressure: 0.3~0.8MPa

1.Ambient Temperature: -5~55℃
2.Relatively Humidity: <85%
3.Working Medium: Clean Air
4.VoItage: AC110V/AC220V/DC24V

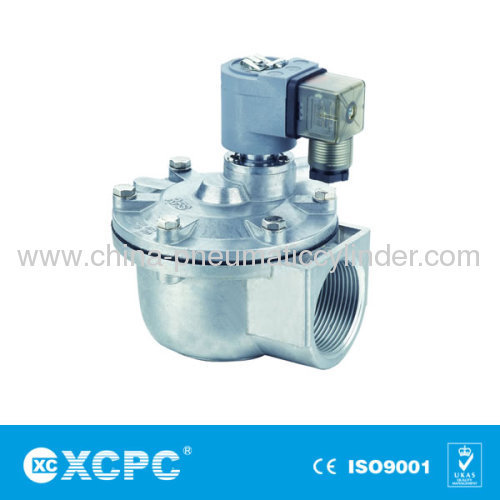

product name : XMFZ Series Right Angle Pulse Valve

Adopt international advanced technology.
Used for dust remover.
Key parts all made of imported materiaIs.
Pneumatic control type,solenoid control type,ex-proof solenoid control type for choose
Female thread connection port,easy to be mounted.

Ordering Code

Specification

Model	XMF-Z-20A	XMF-Z-20P	XMF-Z-20	XMF-Z-25	XMF-Z-25P	XMF-Z-35P	XMF-Z-40S	XMF-Z-50S	XMF-Z-62S	XMF-Z-76S	XMF-Z-100S
Working Pressure	0.3~0.8MPa
Ambient Temperature	-5~55℃
Relatively Humidity	<85%
Working Medium	Clean Air
VoItage	AC110V/AC220V/DC24V
Diaphragm Life Cycles	Over 1000k Cycles
Orifice(mm)	φ20	φ20	φ20	φ25	φ25	φ35	φ40	φ50	φ62	φ76	φ100
Connection Port	G3/4"	G3/4"	G3/4"	G1"	G1"	G1 1/2"	G1 1/2"	G2"	G1 1/2"	G3"	φ100

Overall Dimensions

Model	XMF-Z-20A	XMF-Z-20P	XMF-Z-20	XMF-Z-25	XMF-Z-25P	XMF-Z-35P	XMF-Z-40S	XMF-Z-50S	XMF-Z-62S	XMF-Z-76S	XMF-Z-100S
A	173	124	110	110	124	142	166	202	222	245	356.5
B	145	105	90.5	90.5	105	121	132	210	210	230.5	286.5
C	-	82.5	75	75	82.5	-	-	-	-	-	-
D	φ90	-	-	-	-	φ112	φ137	φ185	φ185	φ200	φ221
