Model No.: MSV98522-PB

Production Capacity: 1000 pcs per week

Delivery Date: 2-4 weeks

Standard or Nonstandard: Standard

Structure: Pilot

Temperature of Media: Medium Temperature

Brand Name: XCPC

pressure Range: 0~0.8Mpa

Means of Transport: Ocean,Air;courier

Packing: international standard,wood...

Power: Pneumatic

Pressure: Medium Pressure

Material: Alloy

Media: Gas

Working Medium: 40 Micron Filtered Air

Temperature Range: 0~60℃

1.Working Medium: 40 Micron Filtered Air
2.pressure Range: 0~0.8Mpa
3.Temperature Range: 0~60℃

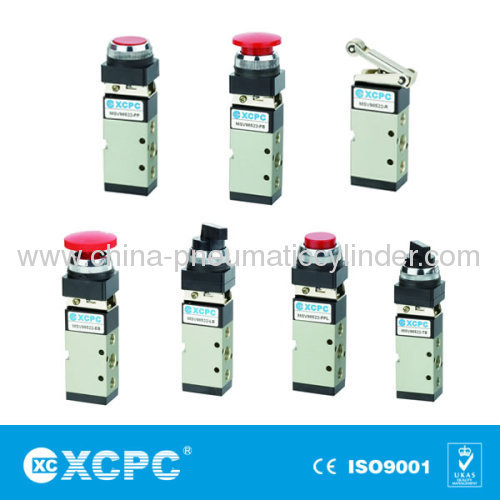

product name : Pneumatic Mechanical Valve

Ordering Code
Specification Code: Mechanical Valve
Series Code: 86 Series 98 Series
Position and Way Number:
32: Two-position Three-way
52: Two-position Five-way
Port Size:
1:G1/8"
2:G1/4"

Specification

Model	MSV86321	MSV86522	MSV98322
Working Medium	40 Micron Filtered Air
Position and Way No.	Two-position Three-way	Two-position Five-way	Two position Three-way
Effective Section Area	12mm 2(CV=0.67)	16mm 2(CV=0.89)	16mm 2(CV=0.89)
Port Size	G1/8"	G1/4"	G1/4"
pressure Range	0~0.8Mpa
Temperature Range	0~60℃

Overall Dimensions

Dimension Sheet

Series	Symbol/Model	PP	PPL	LB	TB	EB	PB	R
MSV86522	A	114	119	133	136.5	134	131	107.5
MSV86522	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
MSV98322	A	106	111	125	129.5	126	123	99.5
MSV98322	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
MSV86321	A	66	71	85	88.5	86	83	59.5
MSV86321	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
