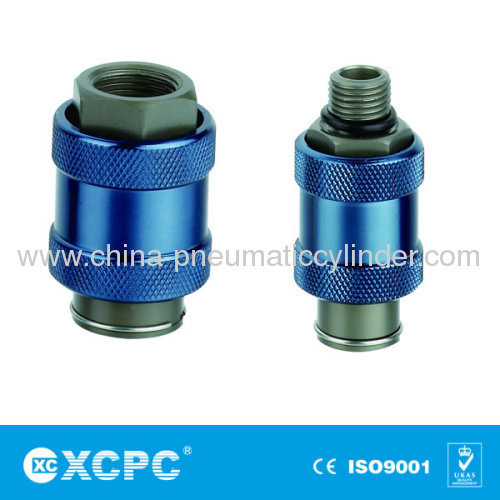

Enlarge Pneumatic G1/8" Hand Sliding Valve

Pneumatic G1/8" Hand Sliding Valve

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: HSV
Production Capacity: 1000 pcs per week
Delivery Date: 2-4 weeks
Standard or Nonstandard: Standard
Structure: Control
Temperature of Media: Medium Temperature
Brand Name: XCPC
Working-pressure: 0~1.0MPa
Means of Transport: Ocean,Air;courier
Packing: international standard,wood...
Power: Pneumatic
Pressure: Medium Pressure
Material: Alloy
Media: Gas
Working Medium: Filtered Air
Ambient Temperature Range: 5~60℃

1.Port Size: G1/8" G1/4" G3/8" G1/2" G3/4"
2.Flow Bore: 4mm 7mm 10mm 12mm 18mm
3.Working Medium: Filtered Air

product name : Pneumatic Hand-sliding Valve

This vaIve is a two-positionthree-way hand sliding valve,
which is usually instalied in thepiping to turn on/off airs.When
it is turned off,the air pressurein the preumatic system is
exhausted simultaneously.

Ordering Code



Specification

Model

HSV-01

HSV-02

HSV-03

HSV-04

HSV-05

Port Size

G1/8"

G1/4"

G3/8"

G1/2"

G3/4"

Flow Bore

4mm

7mm

10mm

12mm

18mm

Working Medium

Filtered Air

Working-pressure

0~1.0MPa

Ambient Temperature Range

5~60℃

Working Force

20N

30N



Overall Dimensions



Model/Symbol

A

B

C

D

E

L

G

HSV-01

20

13

14

3

20

32

G1/8

HSV-02

27

18

19

5

32

48

G1/4

HSV-03

30

21

22

5

32

48

G3/8

HSV-04

38

24

27

10

40

70

G1/2

HSV-06

45

32

34

10

45

75

G3/4







Pneumatic Hand-sliding Valve
