ST series Pneumatic Shuttle Valve
| Price: | 1.0 USD |
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.Effective Sectional Area: 7.5mm2 21mm2 40mm2 60mm2 110mm2 90mm2
2.Port Size: G1/8" G1/4" G3/8" G1/2" G3/4" G1"
3.Working Medium: Air
product name : ST Series Shuttle Valve
Ordering Code
Series Code:
ST: Shuttle Valve
Port Size:
01:G1/8"
02:G1/4"
03:G3/8"
04:G1/2"
06:G3/4"
08:G1"
Specification
Model | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
Working Medium | Air | |||||
Effective Sectional Area | 7.5mm2 | 21mm2 | 40mm2 | 60mm2 | 110mm2 | 190mm2 |
Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
Working Pressure Range | 0~1.0MPa | |||||
Operating Temperature Range | -5~60 | |||||
Overall Dimensions
Mode/Symbol | A | B | C | D | E | F | G |
ST-01 | 40 | 24 | 16 | 4.5 | 25 | 20.5 | G1/8" |
ST-02 | 50 | 35 | 22 | 5.5 | 35 | 25 | G1/4" |
ST-03 | 75 | 48 | 30 | 7 | 50 | 42 | G3/8" |
ST-04 | 75 | 48 | 30 | 7 | 50 | 42 | G1/2" |
ST-06 | 110 | 72 | 40 | 7 | 70 | 58 | G3/4" |
ST-08 | 110 | 72 | 40 | 7 | 70 | 58 | G1" |

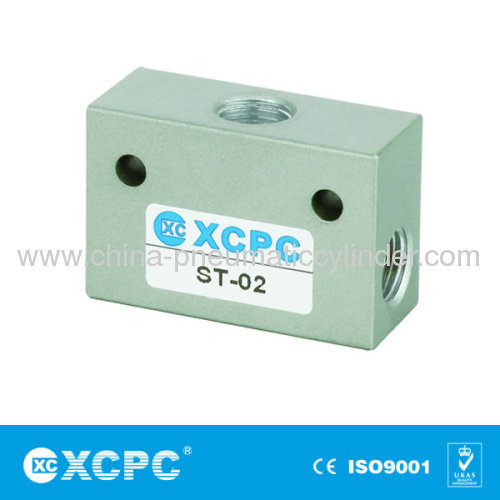

ST Series Shuttle Valve
